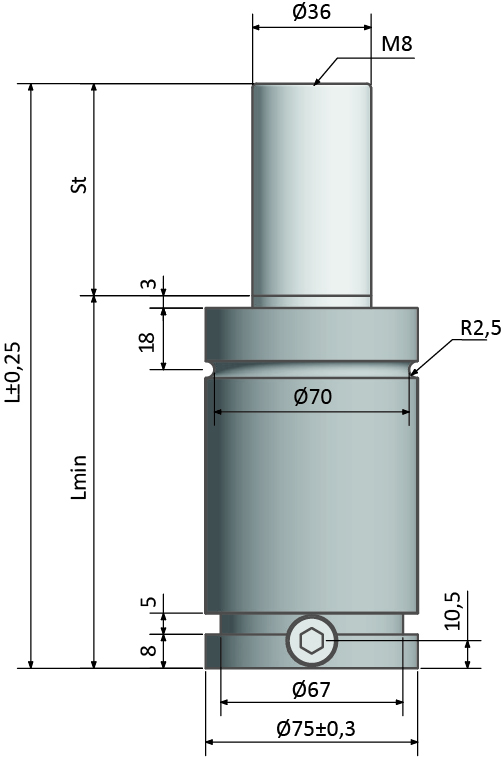

Y 01500

Y 01500

Y Series

Model

Y 01500

Stroke mm

13-300

Fo (daN)

1530

F1i (daN)

1893-2280

F1p (daN)

2032-2601

Cylinder DIM

75

Piston DIM

36

Length mm

135-710

Kod

STR mm

L mm

L min mm

Fo (daN)

F1i (daN)

F1p (daN)

PED

3D

Y 01500 013 A

13

135

122

1530

1893

2032

Y 01500 025 A

25

160

135

1530

1992

2174

Y 01500 038 A

38

186

148

1530

2059

2271

Y 01500 050 A

50

210

160

1530

2098

2329

Y 01500 063 A

63,5

237

173,5

1530

2120

2361

Y 01500 075 A

75

260

185

1530

2145

2399

Y 01500 080 A

80

270

190

1530

2152

2408

Y 01500 088 A

88

285

197

1530

2170

2436

Y 01500 100 A

100

310

210

1530

2173

2438

Y 01500 113 A

113

335

222

1530

2186

2458

Y 01500 125 A

125

360

235

1530

2187

2461

Y 01500 138 A

138

385

247

1530

2197

2476

Y 01500 150 A

150

410

260

1530

2200

2479

Y 01500 160 A

160

430

270

1530

2204

2485

Y 01500 175 A

175

460

285

1530

2209

2493

Y 01500 200 A

200

510

310

1530

2219

2509

Y 01500 225 A

225

560

335

1530

2239

2538

Y 01500 250 A

250

610

360

1530

2255

2562

Y 01500 275 A

275

660

385

1530

2269

2583

Y 01500 300 A

300

710

410

1530

2280

2601
