TE
T Series

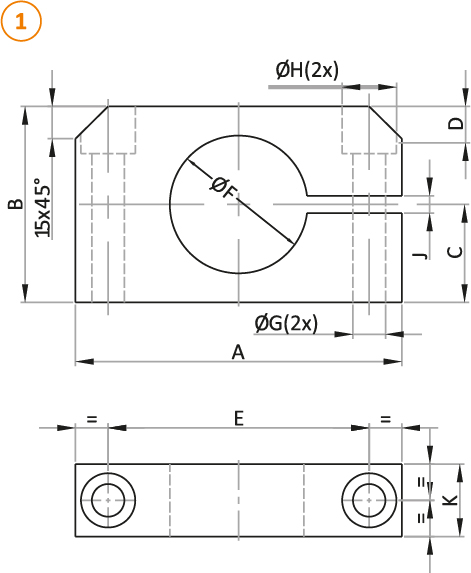

TE(1) Reference to
Standarts
A B C D E ØF ØG ØH J K
mm mm mm mm mm mm mm mm mm mm
TE 045   100 60 30 20 70 45.3 11 18 10 25

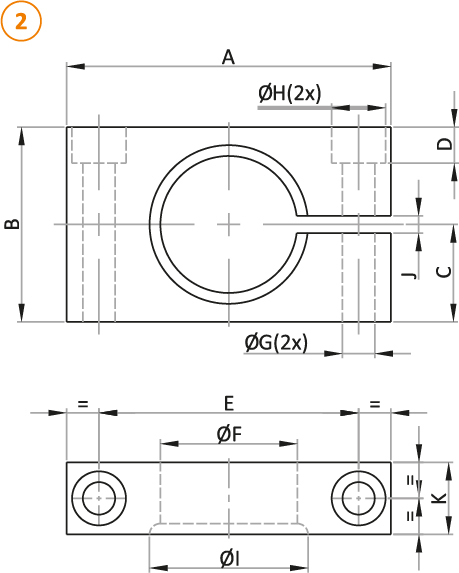

TE(2) Reference to
Standarts
A B C D E ØF ØG ØH ØI J K
mm mm mm mm mm mm mm mm mm mm mm
TE 050 k 90 70 30 25 68 50.3 11 18 54.1 10 30
TE 075 k 125 94 42 19 100 75.3 13 20 80.1 10 30
TE 095 k 140 115 52.5 40 115 95.3 13 20 100.1 10 30
