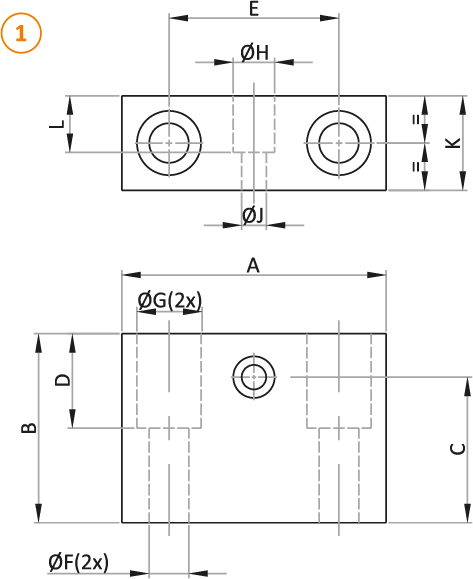

| TT(1) | Reference to Standarts |
A | B | C | D | E | ØF | ØG | ØH | ØJ | K | K |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| TT 032 | e | 70 | 50 | 38.5 | 25 | 45 | 10.5 | 17 | 11 | 6.5 | 15 | 25 |

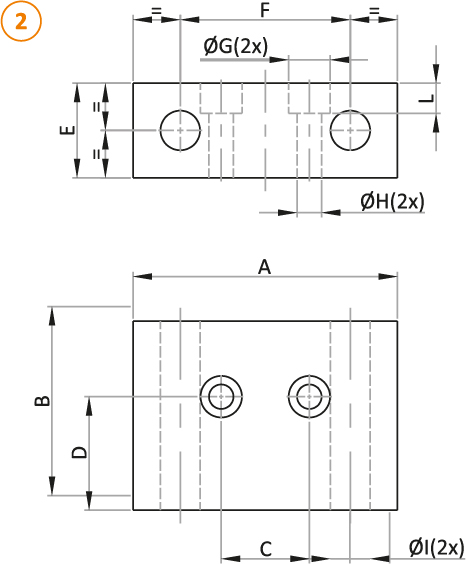

| TT(2) | Reference to Standarts |
A | B | C | D | E | F | ØG | ØH | L | ØI |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| TT 038 | d | 60 | 38 | 18 | 23.9 | 28 | 40 | 14 | 9 | 10 | 9 |
| TT 050 | k | 65 | 45 | 20 | 30 | 28 | 44 | 14 | 9 | 10 | 11 |
| TT 075 | k | 80 | 45 | 28.3 | 27.8 | 28 | 57 | 14 | 9 | 10 | 14 |
| TT 095 | k | 95 | 45 | 42.4 | 31.2 | 28 | 70 | 14 | 9 | 10 | 14 |
