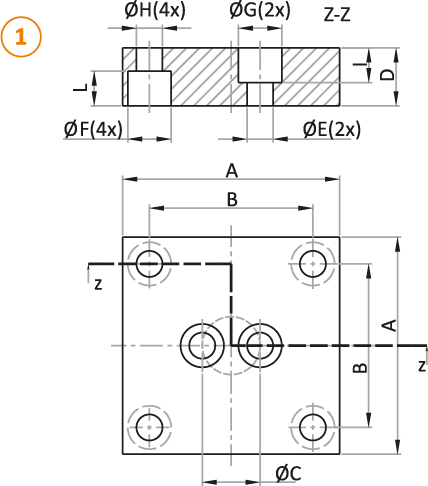

| KB(1) | Reference to Standarts |
A | B | ØC | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| KB 045 | u | 70 | 50 | 20 | 20 | 9 | 18 | 15 | 11 | 14 | 12 |
| KB 050 | u | 75 | 56.5 | 20 | 20 | 9 | 18 | 15 | 11 | 14 | 12 |

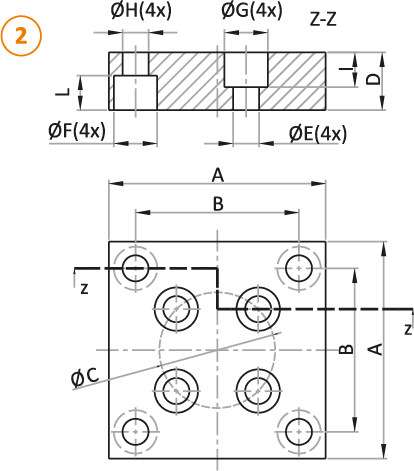

| KB(2) | Reference to Standarts |
A | B | ØC | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| KB 075 | u | 100 | 73.5 | 40 | 20 | 9 | 18 | 15 | 11 | 14 | 12 |
| KB 095 | u | 120 | 92 | 60 | 20 | 9 | 20 | 15 | 13.5 | 14 | 13 |
| KB 120 | u | 140 | 109.5 | 80 | 20 | 11 | 20 | 18 | 13.5 | 15 | 13 |
| KB 150 | u | 190 | 138 | 100 | 25 | 11 | 26 | 18 | 17.5 | 15 | 17 |
| KB 195 | u | 210 | 170 | 120 | 25 | 13.5 | 26 | 20 | 17.5 | 15 | 17 |
