TD
T Series
TD Reference to
Standarts

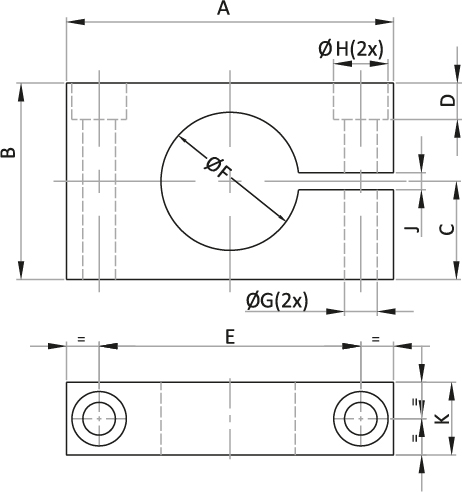

A B C D E ØF ØG ØH J K
mm mm mm mm mm mm mm mm mm mm
TD 032 b-c-l-s-v-γ 68 48 20.9 10 50 32.5 9 15 4 20
TD 038 b-c-l-s-v-γ 74 54 23.9 16 54 38.5 9 15 4 20
TD 045 b-c-l-s-v-γ 80 60 27.5 22 60 45.5 9 15 4 20
TD 050 b-c-d-l-s-v-γ 90 70 30 25 68 50.5 11 18 5 30
TD 063 b-s-v-γ 108 82 36.5 27 84 63.5 11 18 5 30
TD 075 b-c-d-l-s-v-γ 125 94 42 32 100 75.5 13.5 20 5 30
TD 095 b-c-d-l-s-v-γ 140 115 52.5 33 115 95.5 13.5 20 5 30
TD 120 b-c-l-s-v-γ 170 140 65 58 145 120.5 13.5 20 7 30
TD 150 b-c-l-s-v-γ 200 170 80 68 175 150.5 13.5 20 7 30
