| C | Reference to Standarts |

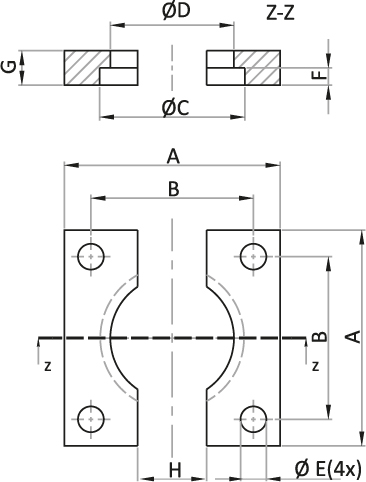

A mm | B mm | ØC mm | ØD mm | ØE mm | F mm | G mm | H mm |
| C 032 | a-c-d-g-o | 50 | 35 | 32.5 | 28.5 | 6.6 | 4 | 7 | 5 |
| C 038 | a-c-d-g-o | 55 | 40 | 38.5 | 34.5 | 7 | 4 | 7 | 5 |
| C 045 | a-c-d-g-o-v-β | 70 | 50 | 45.5 | 41.5 | 9 | 4 | 7 | 20 |
| C 050 | a-c-d-g-o-v-β | 75 | 56.5 | 50.5 | 44.5 | 9 | 8 | 12 | 24 |
| C 063 | 85 | 63.5 | 63.5 | 57.5 | 11 | 8 | 12 | 24 | |
| C 075 | a-c-d-g-o-v-β | 100 | 73.5 | 75.5 | 68.5 | 11 | 8 | 12 | 24 |
| C 095 | a-c-d-g-o-v-β | 120 | 92 | 95.5 | 88.5 | 13.5 | 8 | 12 | 24 |
| C 120 | a-c-d-g-o-v-β | 140 | 109.5 | 120.5 | 113.5 | 13.5 | 8 | 12 | 24 |
| C 150 | a-c-d-g-o-v-β | 190 | 138 | 150.5 | 143.5 | 17.5 | 8 | 12 | 24 |
| C 195 | a-c-d-g-o-v-β | 210 | 170 | 195.5 | 188 | 17.5 | 8 | 13 | 24 |
