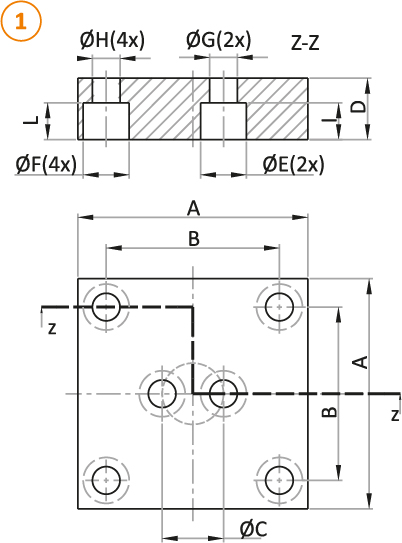

| K(1) | Reference to Standarts |
A | B | ØC | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| K 045 | a-b-j-t-u | 70 | 50 | 20 | 20 | 15 | 15 | 9 | 9 | 14 | 12 |
| K 050 | a-b-j-t-u | 75 | 56.5 | 20 | 20 | 15 | 15 | 9 | 9 | 14 | 12 |
| K 063 | 100 | 73.5 | 20 | 20 | 15 | 18 | 9 | 11 | 12 | 12 |

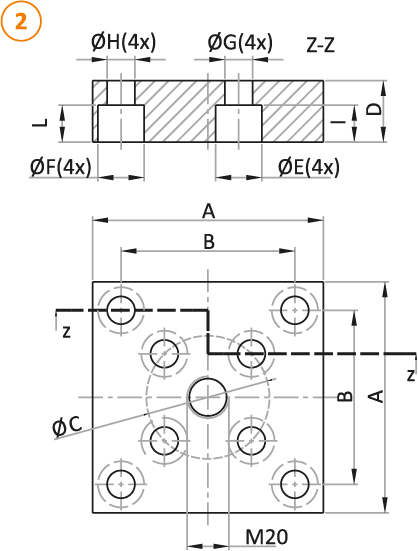

| K(2) | Reference to Standarts |
A | B | ØC | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| K 075 | a-b-j-t-u | 100 | 73.5 | 40 | 20 | 15 | 18 | 9 | 11 | 14 | 12 |
| K 095 | a-b-j-t-u | 120 | 92 | 60 | 20 | 15 | 20 | 9 | 13.5 | 14 | 13 |
| K 120 | a-b-j-u | 140 | 109.5 | 80 | 20 | 18 | 20 | 11 | 13.5 | 15 | 13 |
| K 150 | a-b-j-u | 190 | 138 | 100 | 25 | 18 | 26 | 11 | 17.5 | 15 | 17 |
| K 195 | a-b-j-u | 210 | 170 | 120 | 25 | 20 | 26 | 13.5 | 17.5 | 13 | 17 |
