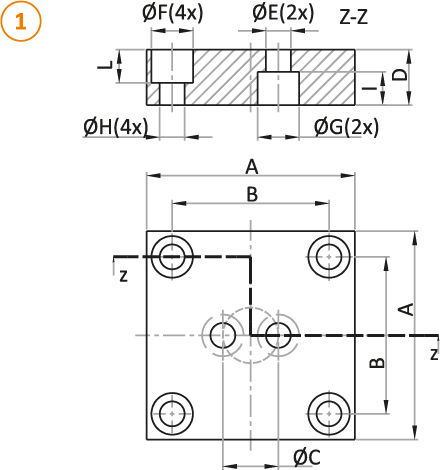

| KC(1) | Reference to Standarts |
A | B | C | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| KC 045 | c-n | 70 | 50 | 20 | 20 | 9 | 15 | 15 | 9 | 12 | 12 |
| KC 050 | c-n | 75 | 56.5 | 20 | 20 | 9 | 15 | 15 | 9 | 12 | 12 |
| KC 063 | c-n | 100 | 73.5 | 20 | 20 | 9 | 18 | 15 | 11 | 12 | 12 |

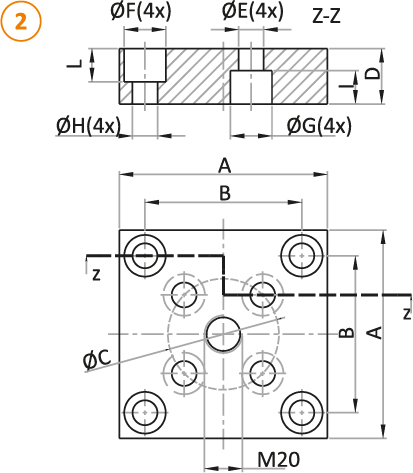

| KC(2) | Reference to Standarts |
A | B | ØC | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| KC 075 | c-n | 100 | 73.5 | 40 | 20 | 9 | 18 | 15 | 11 | 12 | 14 |
| KC 095 | c-n | 120 | 92 | 60 | 20 | 9 | 20 | 15 | 13.5 | 14 | 13 |
| KC 120 | c-n | 140 | 109.5 | 80 | 20 | 11 | 20 | 18 | 13.5 | 15 | 13 |
| KC 150 | c-n | 190 | 138 | 100 | 20 | 11 | 20 | 18 | 13.5 | 15 | 13 |
| KC 195 | n | 210 | 170 | 120 | 25 | 13.5 | 26 | 20 | 17.5 | 15 | 17 |
