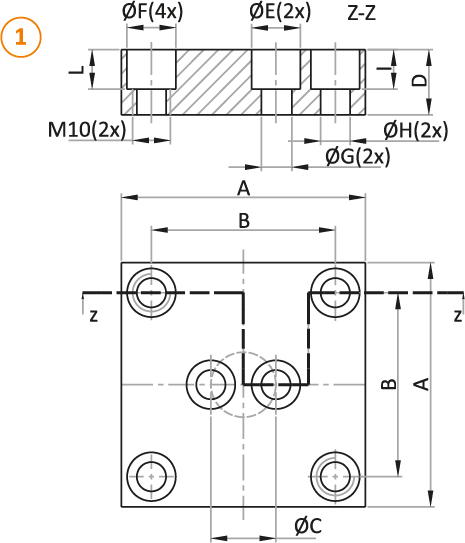

| KF(1) | Reference to Standarts |
A | B | C | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| KF 045 | c | 70 | 50 | 20 | 20 | 15 | 15 | 9 | 9 | 12 | 12 |
| KF 050 | c | 75 | 56.5 | 20 | 20 | 15 | 15 | 9 | 9 | 12 | 12 |

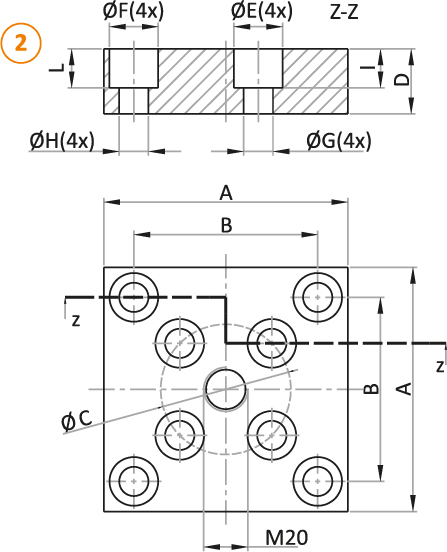

| KF(2) | Reference to Standarts |
A | B | ØC | D | ØE | ØF | ØG | ØH | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| KF 075 | c | 100 | 73.5 | 40 | 20 | 15 | 18 | 9 | 11 | 12 | 15 |
| KF 150 | c-h | 190 | 138 | 100 | 20 | 18 | 26 | 11 | 17.5 | 15 | 17 |
