| TA | Reference to Standarts |

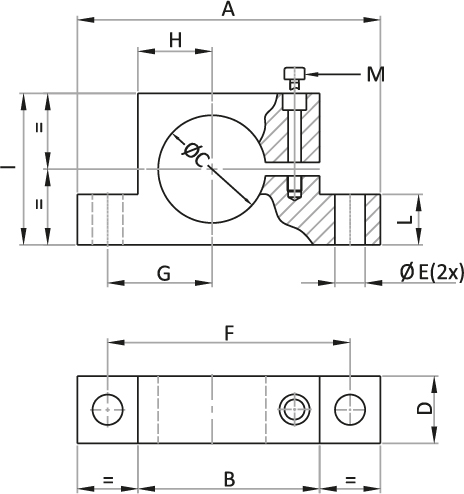

A | B | ØC | D | ØE | M | F | G | H | I | L |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| TA 032 | a-b-c-m-t | 90 | 54 | 32 | 20 | 9 | M8 | 72 | 31 | 22 | 45 | 15 |
| TA 038 | a-b-c-m-t | 95 | 59 | 38 | 20 | 9 | M8 | 77 | 34 | 25 | 55 | 15 |
| TA 045 | a-b-c-m-t | 100 | 64 | 45 | 20 | 9 | M8 | 82 | 37 | 28 | 60 | 15 |
| TA 050 | a-b-c-m-t | 130 | 90 | 50 | 30 | 9 | M8 | 110 | 50 | 40 | 80 | 20 |
| TA 075 | a-b-c-m-t | 160 | 115 | 75 | 30 | 11 | M10 | 137 | 63.5 | 52.5 | 105 | 20 |
| TA 095 | a-b-c-m-t | 195 | 145 | 95 | 30 | 13.5 | M12 | 170 | 80 | 67.5 | 125 | 20 |
| TA 120 | a-b-c-m-t | 220 | 165 | 120 | 30 | 13.5 | M12 | 195 | 92.5 | 77.5 | 148 | 20 |
| TA 150 | a-b-c-m-t | 260 | 200 | 150 | 30 | 13.5 | M12 | 230 | 110 | 95 | 200 | 20 |
