    EK 02400
    Home Products Gas Springs EK Series EK 02400

    Search for products: K 19, EF 00170, etc.

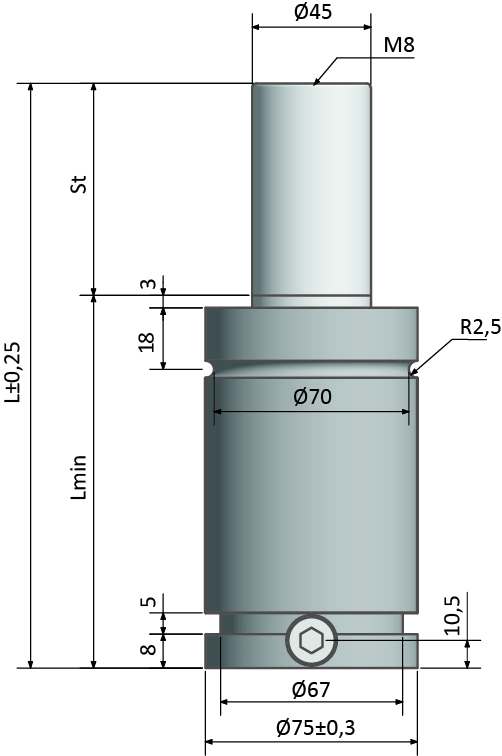

    EK 02400
    EK Series
    Model
    EK 02400
    Stroke mm
    16-125
    Fo (daN)
    2385
    F1i (daN)
    3664-4212
    F1p (daN)
    4217-5076
    Cylinder DIM
    75
    Piston DIM
    45
    Length mm
    87-305
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    EK 02400 016
    16
    87
    71
    2385
    3664
    4217
    EK 02400 019
    19
    93
    74
    2385
    3739
    4333
    EK 02400 025
    25
    105
    80
    2385
    3850
    4504
    EK 02400 032
    32
    119
    87
    2385
    3937
    4640
    EK 02400 038
    38
    131
    93
    2385
    3991
    4725
    EK 02400 050
    50
    155
    105
    2385
    4054
    4824
    EK 02400 063
    63
    181
    118
    2385
    4109
    4911
    EK 02400 075
    75
    205
    130
    2385
    4144
    4968
    EK 02400 080
    80
    215
    135
    2385
    4156
    4987
    EK 02400 100
    100
    255
    155
    2385
    4186
    5035
    EK 02400 125
    125
    305
    180
    2385
    4212
    5076
    Component Parts
    C 075
    C Series
    View Detail
    CB 075
    C Series
    View Detail
    D 075
    D Series
    View Detail
    DK 075
    DK Series
    View Detail
    K 075
    K Series
    View Detail
    KB 075
    K Series
    View Detail
    KC 075
    K Series
    View Detail
    KF 075
    K Series
    View Detail
    TA 075
    T Series
    View Detail
    TD 075
    T Series
    View Detail
    TE 075
    T Series
    View Detail
    TT 075
    T Series
    View Detail
