    EK 00750
    Home Products Gas Springs EK Series EK 00750

    Search for products: K 19, EF 00170, etc.

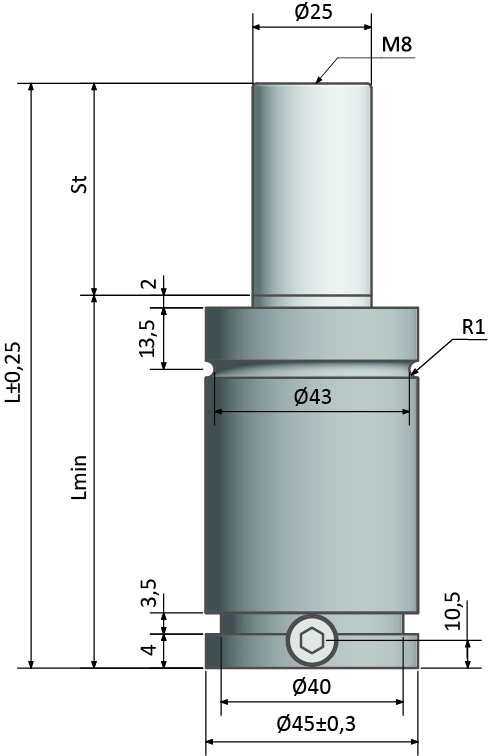

    EK 00750
    EK Series
    Model
    EK 00750
    Stroke mm
    10-125
    Fo (daN)
    740
    F1i (daN)
    1180-1363
    F1p (daN)
    1378-1667
    Cylinder DIM
    45
    Piston DIM
    25
    Length mm
    62-292
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    EK 00750 010
    10
    62
    52
    740
    1180
    1378
    EK 00750 013
    13
    68
    55
    740
    1240
    1471
    EK 00750 016
    16
    74
    58
    740
    1245
    1480
    EK 00750 019
    19
    80
    61
    740
    1249
    1486
    EK 00750 025
    25
    92
    67
    740
    1255
    1494
    EK 00750 032
    32
    106
    74
    740
    1265
    1510
    EK 00750 038
    38
    118
    80
    740
    1284
    1540
    EK 00750 050
    50
    142
    92
    740
    1295
    1558
    EK 00750 063
    63
    168
    105
    740
    1318
    1594
    EK 00750 075
    75
    192
    117
    740
    1330
    1615
    EK 00750 080
    80
    202
    122
    740
    1344
    1637
    EK 00750 100
    100
    242
    142
    740
    1350
    1647
    EK 00750 125
    125
    292
    167
    740
    1363
    1667
