    EG 02400
    Home Products Gas Springs EG Series EG 02400

    Search for products: K 19, EF 00170, etc.

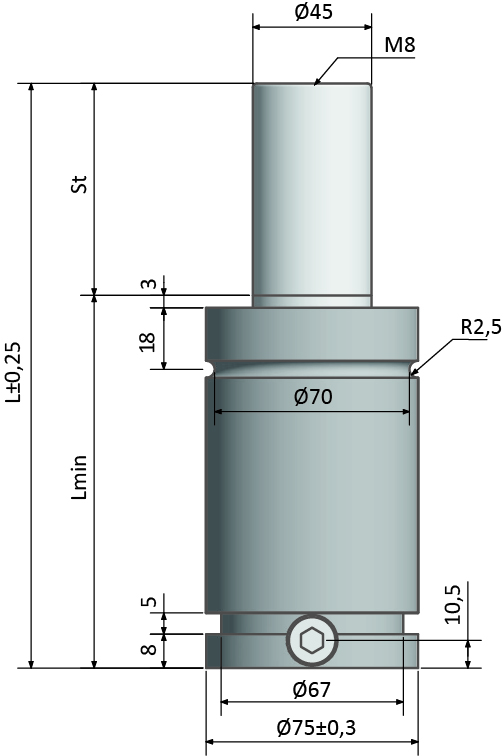

    EG 02400
    EG Series
    Model
    EG 02400
    Stroke mm
    10-125
    Fo (daN)
    2385
    F1i (daN)
    3274-4172
    F1p (daN)
    3632-5012
    Cylinder DIM
    75
    Piston DIM
    45
    Length mm
    79-309
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    EG 02400 010
    10
    79
    69
    2385
    3274
    3632
    EG 02400 013
    13
    85
    72
    2385
    3403
    3824
    EG 02400 016
    16
    91
    75
    2385
    3488
    3951
    EG 02400 019
    19
    97
    78
    2385
    3571
    4076
    EG 02400 025
    25
    109
    84
    2385
    3697
    4268
    EG 02400 032
    32
    123
    91
    2385
    3801
    4428
    EG 02400 038
    38
    135
    97
    2385
    3867
    4531
    EG 02400 050
    50
    159
    109
    2385
    3961
    4678
    EG 02400 063
    63
    185
    122
    2385
    4020
    4771
    EG 02400 075
    75
    209
    134
    2385
    4067
    4844
    EG 02400 080
    80
    219
    139
    2385
    4082
    4869
    EG 02400 100
    100
    259
    159
    2385
    4131
    4946
    EG 02400 125
    125
    309
    184
    2385
    4172
    5012
