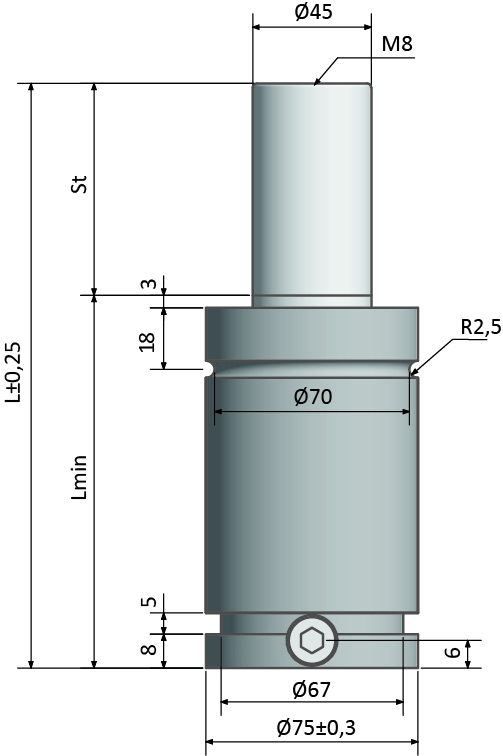

E 02400

E 02400

E Series

Model

E 02400

Stroke mm

10-125

Fo (daN)

2385

F1i (daN)

3371-4189

F1p (daN)

3776-5039

Cylinder DIM

75

Piston DIM

45

Length mm

65-295

Kod

STR mm

L mm

L min mm

Fo (daN)

F1i (daN)

F1p (daN)

PED

3D

E 02400 010 A

10

65

55

2385

3371

3776

E 02400 013 A

13

71

58

2385

3500

3969

E 02400 016 A

16

77

61

2385

3599

4119

E 02400 019 A

19

83

64

2385

3659

4210

E 02400 025 A

25

95

70

2385

3777

4392

E 02400 032 A

32

109

77

2385

3889

4565

E 02400 038 A

38

121

83

2385

3947

4656

E 02400 050 A

50

145

95

2385

4018

4767

E 02400 063 A

63

171

108

2385

4088

4878

E 02400 075 A

75

195

120

2385

4117

4925

E 02400 080 A

80

205

125

2385

4131

4946

E 02400 100 A

100

245

145

2385

4165

5000

E 02400 125 A

125

295

170

2385

4189

5039
