OL 04700 K
OL Series
Model
OL 04700 K
Stroke mm
15-80
Fo (daN)
4925
F1i (daN)
7241-9355
F1p (daN)
7839-10676

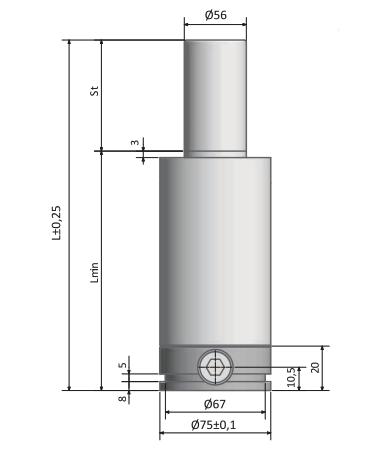

Cylinder DIM
75
Piston DIM
56
Length mm
120-270
Kod
STR mm
L mm
L min mm
Fo (daN)
F1i (daN)
F1p (daN)
PED
3D
OL 04700 015 K
15
120
105
4925
7241
7839
OL 04700 025 K
25
140
115
4925
8201
9110
OL 04700 038 K
38
170
132
4925
8740
9837
OL 04700 050 K
50
200
150
4925
8898
10052
OL 04700 063 K
63
230
167
4925
9166
10418
OL 04700 080 K
80
270
190
4925
9355
10676
