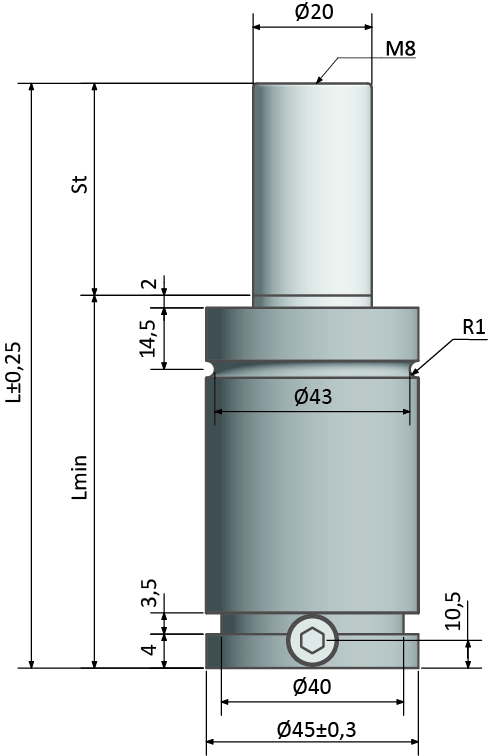

H 00500

H 00500

H Series

Model

H 00500

Stroke mm

6-125

Fo (daN)

470

F1i (daN)

622-731

F1p (daN)

682-844

Cylinder DIM

45

Piston DIM

20

Length mm

62-300

Kod

STR mm

L mm

L min mm

Fo (daN)

F1i (daN)

F1p (daN)

PED

3D

H 00500 006 A

6

62

56

470

622

682

H 00500 013 A

13

76

63

470

653

726

H 00500 019 A

19

88

69

470

673

756

H 00500 025 A

25

100

75

470

685

775

H 00500 038 A

38

126

88

470

701

798

H 00500 050 A

50

150

100

470

708

810

H 00500 063 A

63

176

113

470

714

818

H 00500 080 A

80

210

130

470

718

825

H 00500 100 A

100

250

150

470

726

836

H 00500 125 A

125

300

175

470

731

844

Component Parts
