    EG 04200
    Home Products Gas Springs EG Series EG 04200

    Search for products: K 19, EF 00170, etc.

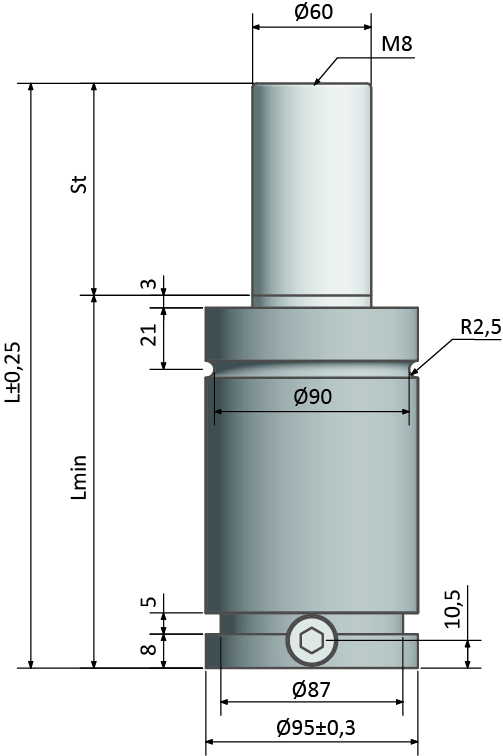

    EG 04200
    EG Series
    Model
    EG 04200
    Stroke mm
    16-125
    Fo (daN)
    4240
    F1i (daN)
    6373-7722
    F1p (daN)
    7284-9398
    Cylinder DIM
    95
    Piston DIM
    60
    Length mm
    94-312
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    EG 04200 016
    16
    94
    78
    4240
    6373
    7284
    EG 04200 019
    19
    100
    81
    4240
    6540
    7538
    EG 04200 025
    25
    112
    87
    4240
    6777
    7903
    EG 04200 032
    32
    126
    94
    4240
    6986
    8228
    EG 04200 038
    38
    138
    100
    4240
    7109
    8420
    EG 04200 050
    50
    162
    112
    4240
    7296
    8716
    EG 04200 063
    63
    188
    125
    4240
    7429
    8927
    EG 04200 075
    75
    212
    137
    4240
    7519
    9071
    EG 04200 080
    80
    222
    142
    4240
    7556
    9132
    EG 04200 100
    100
    262
    162
    4240
    7643
    9270
    EG 04200 125
    125
    312
    187
    4240
    7722
    9398
    Component Parts
    C 095
    C Series
    View Detail
    CB 095
    C Series
    View Detail
    D 095
    D Series
    View Detail
    DK 095
    DK Series
    View Detail
    K 095
    K Series
    View Detail
    KB 095
    K Series
    View Detail
    KC 095
    K Series
    View Detail
    TA 095
    T Series
    View Detail
    TD 095
    T Series
    View Detail
    TE 095
    T Series
    View Detail
    TT 095
    T Series
    View Detail
