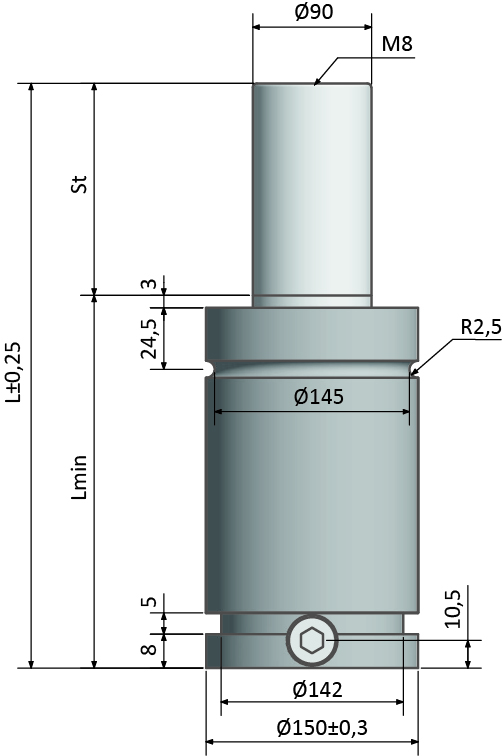

E 09500

E 09500

E Series

Model

E 09500

Stroke mm

19-125

Fo (daN)

9540

F1i (daN)

13654-16407

F1p (daN)

15355-15936

Cylinder DIM

150

Piston DIM

90

Length mm

116-328

Kod

STR mm

L mm

L min mm

Fo (daN)

F1i (daN)

F1p (daN)

PED

3D

E 09500 019 A

19

116

97

9540

13654

15355

E 09500 025 A

25

128

103

9540

14108

16036

E 09500 032 A

32

142

110

9540

14628

16826

E 09500 038 A

38

154

116

9540

14932

17292

E 09500 050 A

50

178

128

9540

15359

17952

E 09500 063 A

63

204

141

9540

15686

18461

E 09500 075 A

75

228

153

9540

15898

18793

E 09500 080 A

80

238

158

9540

15977

18917

E 09500 100 A

100

278

178

9540

16207

19279

E 09500 125 A

125

328

203

9540

16407

19596
