    ET 09500
    Home Products Gas Springs ET Series ET 09500

    Search for products: K 19, EF 00170, etc.

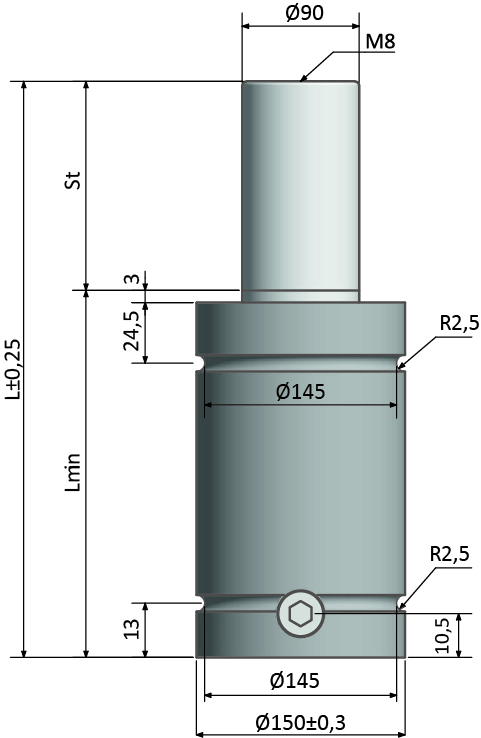

    ET 09500
    ET Series
    Model
    ET 09500
    Stroke mm
    19-125
    Fo (daN)
    9540
    F1i (daN)
    13477-16330
    F1p (daN)
    15092-19474
    Cylinder DIM
    150
    Piston DIM
    90
    Length mm
    116-328
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    ET 09500 019
    19
    116
    97
    9540
    13477
    15092
    ET 09500 025
    25
    128
    103
    9540
    14007
    15884
    ET 09500 032
    32
    142
    110
    9540
    14467
    16580
    ET 09500 038
    38
    154
    116
    9540
    14779
    17056
    ET 09500 050
    50
    178
    128
    9540
    15223
    17740
    ET 09500 063
    63
    204
    141
    9540
    15565
    18272
    ET 09500 075
    75
    228
    153
    9540
    15789
    18622
    ET 09500 080
    80
    238
    158
    9540
    15872
    18752
    ET 09500 100
    100
    278
    178
    9540
    16117
    19137
    ET 09500 125
    125
    328
    203
    9540
    16330
    19474
    Component Parts
    D 150
    D Series
    View Detail
    DK 150
    DK Series
    View Detail
    K 150
    K Series
    View Detail
    KB 150
    K Series
    View Detail
    KC 150
    K Series
    View Detail
    KF 150
    K Series
    View Detail
    TA 150
    T Series
    View Detail
    TD 150
    T Series
    View Detail
