    EG 06600
    Home Products Gas Springs EG Series EG 06600

    Search for products: K 19, EF 00170, etc.

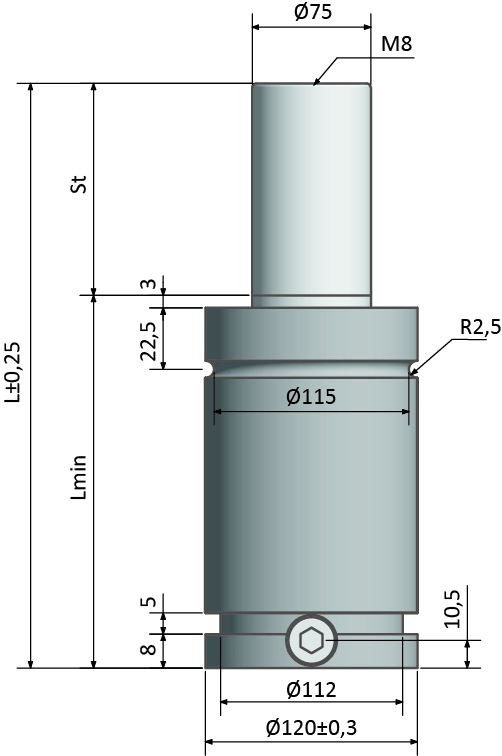

    EG 06600
    EG Series
    Model
    EG 06600
    Stroke mm
    16-125
    Fo (daN)
    6630
    F1i (daN)
    9452-11790
    F1p (daN)
    10618-14240
    Cylinder DIM
    120
    Piston DIM
    75
    Length mm
    104-322
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    EG 06600 016
    16
    104
    88
    6630
    9452
    10618
    EG 06600 019
    19
    110
    91
    6630
    9692
    10977
    EG 06600 025
    25
    122
    97
    6630
    10092
    11583
    EG 06600 032
    32
    136
    104
    6630
    10444
    12124
    EG 06600 038
    38
    148
    110
    6630
    10658
    12453
    EG 06600 050
    50
    172
    122
    6630
    10989
    12970
    EG 06600 063
    63
    198
    135
    6630
    11234
    13355
    EG 06600 075
    75
    222
    147
    6630
    11401
    13619
    EG 06600 080
    80
    232
    152
    6630
    11461
    13715
    EG 06600 100
    100
    272
    172
    6630
    11637
    13995
    EG 06600 125
    125
    322
    197
    6630
    11790
    14240
    Component Parts
    C 120
    C Series
    View Detail
    CB 120
    C Series
    View Detail
    D 120
    D Series
    View Detail
    DK 120
    DK Series
    View Detail
    K 120
    K Series
    View Detail
    KB 120
    K Series
    View Detail
    KC 120
    K Series
    View Detail
    TA 120
    T Series
    View Detail
    TD 120
    T Series
    View Detail
