    OP 01000
    Home Products Gas Springs OP Series OP 01000

    Search for products: K 19, EF 00170, etc.

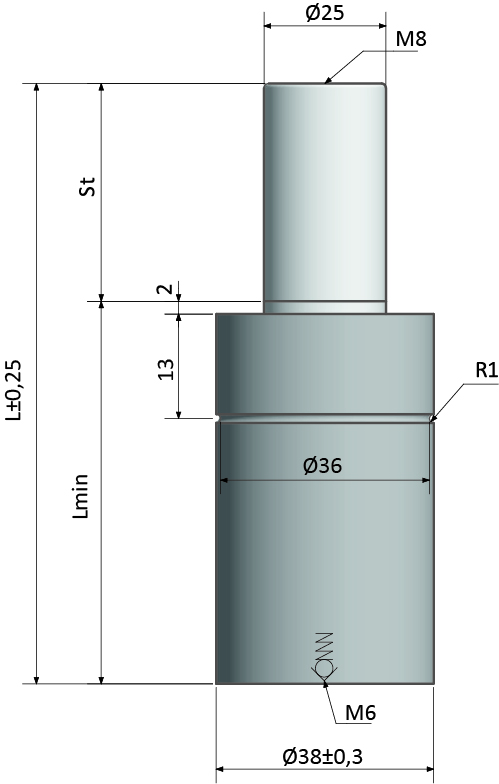

    OP 01000
    OP Series
    Model
    OP 01000
    Stroke mm
    10-80
    Fo (daN)
    1000
    F1i (daN)
    1489-1822
    F1p (daN)
    1693-2213
    Cylinder DIM
    38
    Piston DIM
    25
    Length mm
    75-240
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    OP 01000 010
    10
    75
    65
    1000
    1489
    1693
    OP 01000 015
    15
    85
    70
    1000
    1609
    1877
    OP 01000 020
    20
    95
    75
    1000
    1698
    2016
    OP 01000 025
    25
    105
    80
    1000
    1762
    2117
    OP 01000 032
    32
    120
    88
    1000
    1805
    2186
    OP 01000 038
    38
    135
    97
    1000
    1813
    2200
    OP 01000 045
    45
    150
    105
    1000
    1828
    2224
    OP 01000 050
    50
    160
    110
    1000
    1840
    2243
    OP 01000 056
    56
    175
    119
    1000
    1843
    2247
    OP 01000 063
    63
    205
    142
    1000
    1738
    2079
    OP 01000 080
    80
    240
    160
    1000
    1822
    2213
    Component Parts
    D 038
    D Series
    View Detail
    DK 038
    DK Series
    View Detail
    TA 038
    T Series
    View Detail
    TD 038
    T Series
    View Detail
