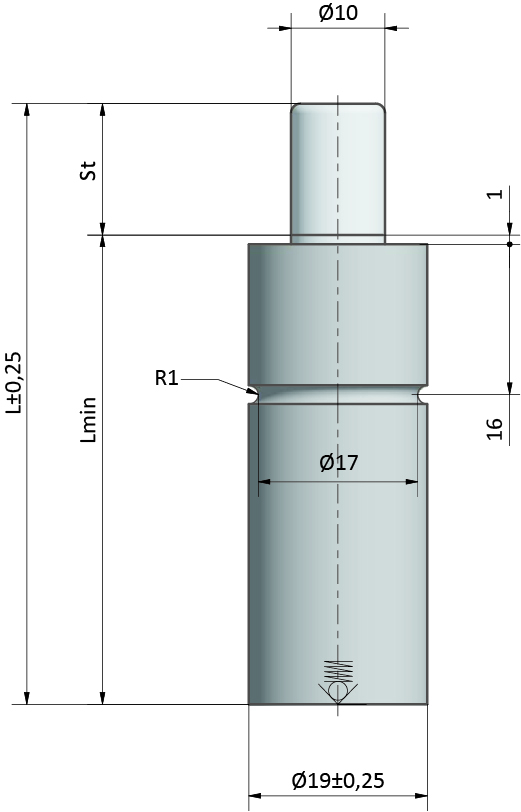

EF 00170

EF 00170

EF Series

Model

EF 00170

Stroke mm

7-125

Fo (daN)

170

F1i (daN)

211-416

F1p (daN)

255-630

Cylinder DIM

19

Piston DIM

10

Length mm

44-285

Kod

STR mm

L mm

L min mm

Fo (daN)

F1i (daN)

F1p (daN)

PED

3D

EF 00170 007 A

7

44

37

170

211

255

EF 00170 010 A

10

50

40

170

236

297

EF 00170 013 A

13

56

43

170

259

336

EF 00170 015 A

15

60

45

170

269

353

EF 00170 019 A

19

68

49

170

278

368

EF 00170 025 A

25

80

55

170

313

431

EF 00170 032 A

32

94

62

170

328

459

EF 00170 038 A

38

106

68

170

346

494

EF 00170 050 A

50

130

80

170

354

508

EF 00170 063 A

63

156

93

170

370

539

EF 00170 075 A

75

185

110

170

384

565

EF 00170 080 A

80

195

115

170

398

593

EF 00170 100 A

100

235

135

170

408

615

EF 00170 125 A

125

285

160

170

416

630

Component Parts
