| D-DF | Reference to Standarts |
ØA mm | B mm | C mm | D mm | ØE mm | ØF mm | G mm | ØH mm |

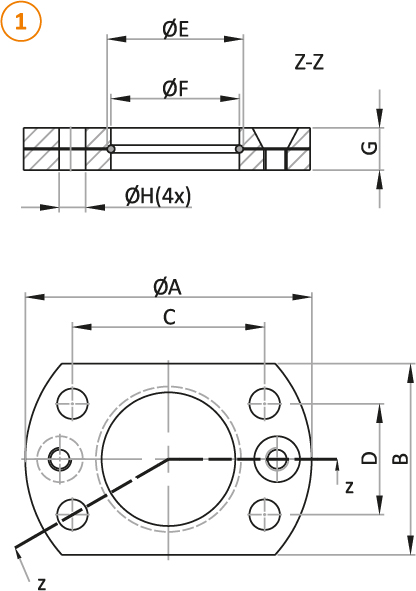

| D 019(1) | a-e | 44 | 25 | 30 | 12 | 21 | 19.5 | 9 | 6.6 |
| D 025(1) | a-e | 50 | 30 | 34 | 18 | 27 | 25.5 | 9 | 6.6 |

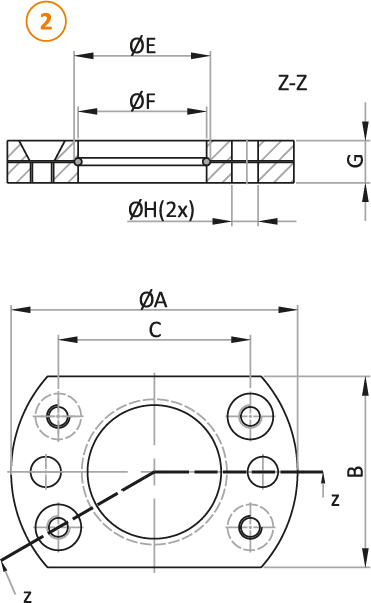

| DF 019(2) | b-c-r-v-z | 44 | 25 | 32 | 21 | 19.5 | 9 | 6.6 | |
| DF 025(2) | b-c-r-t-v-z | 50 | 30 | 38 | 27 | 25.5 | 9 | 6.6 |
