    Y 00250 M38
    Home Products Gas Springs Y Series Y 00250 M38

    Search for products: K 19, EF 00170, etc.

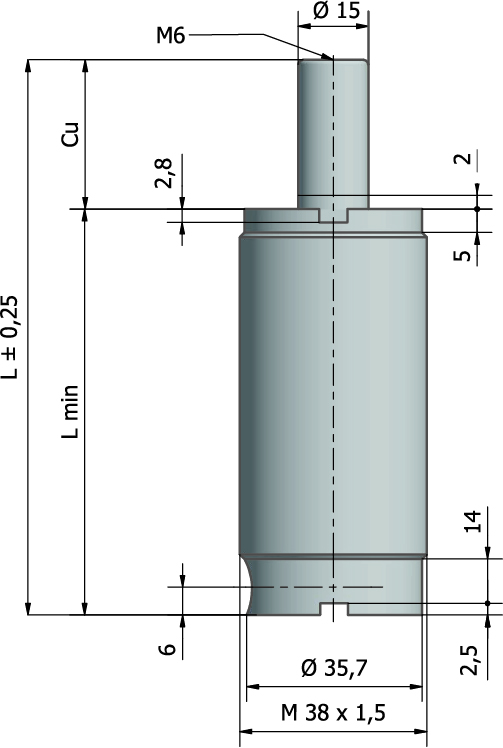

    Y 00250 M38
    Y Series
    Model
    Y 00250 TBM
    Stroke mm
    10-125
    Fo (daN)
    170
    F1i (daN)
    316-355
    F1p (daN)
    34-390
    Piston DIM
    15
    Length mm
    70-300
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    Y 00250 010 M38
    10
    70
    60
    260
    316
    334
    Y 00250 013 M38
    12,7
    75,4
    62,7
    260
    319
    339
    Y 00250 016 M38
    16
    82
    66
    260
    325
    348
    Y 00250 019 M38
    19
    88
    69
    260
    330
    355
    Y 00250 025 M38
    25
    100
    75
    260
    334
    361
    Y 00250 038 M38
    38
    126
    88
    260
    342
    372
    Y 00250 050 M38
    50
    150
    100
    260
    346
    378
    Y 00250 063 M38
    64
    177
    113,5
    260
    347
    380
    Y 00250 080 M38
    80
    210
    130
    170
    352
    386
    Y 00250 100 M38
    100
    250
    150
    170
    354
    390
    Y 00250 125 M38
    125
    300
    175
    170
    355
    390
    Component Parts
    DA 038
    D Series
    View Detail
