    OP 03000
    Home Products Gas Springs OP Series OP 03000

    Search for products: K 19, EF 00170, etc.

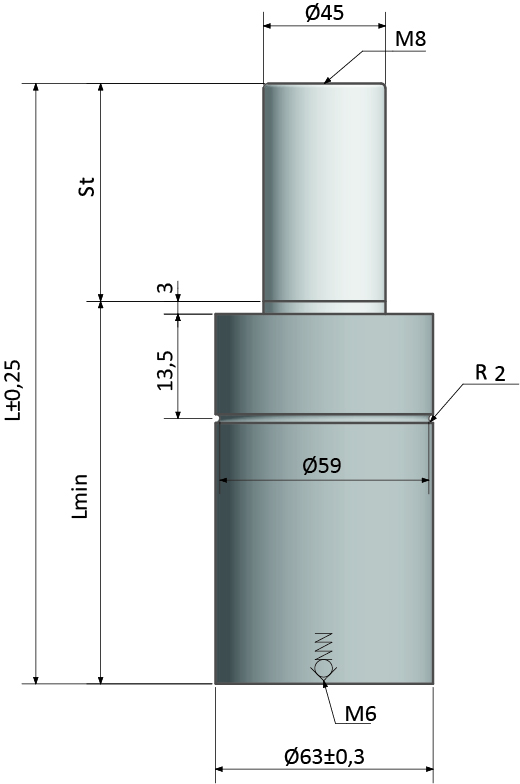

    OP 03000
    OP Series
    Model
    OP 03000
    Stroke mm
    10-80
    Fo (daN)
    3000
    F1i (daN)
    4017-5571
    F1p (daN)
    4264-6327
    Cylinder DIM
    63
    Piston DIM
    45
    Length mm
    95-255
    Kod
    STR mm
    L mm
    L min mm
    Fo (daN)
    F1i (daN)
    F1p (daN)
    PED
    3D
    OP 03000 010
    10
    95
    85
    3000
    4017
    4264
    OP 03000 015
    15
    115
    100
    3000
    4054
    4312
    OP 03000 020
    20
    125
    105
    3000
    4312
    4645
    OP 03000 025
    25
    135
    110
    3000
    4534
    4935
    OP 03000 032
    32
    150
    118
    3000
    4770
    5246
    OP 03000 038
    38
    165
    127
    3000
    4868
    5377
    OP 03000 045
    45
    180
    135
    3000
    5031
    5594
    OP 03000 050
    50
    190
    140
    3000
    5157
    5764
    OP 03000 063
    63
    220
    157
    3000
    5314
    5976
    OP 03000 080
    80
    255
    175
    3000
    5571
    6327
    Component Parts
