| DK-DKA | Reference to Standarts |

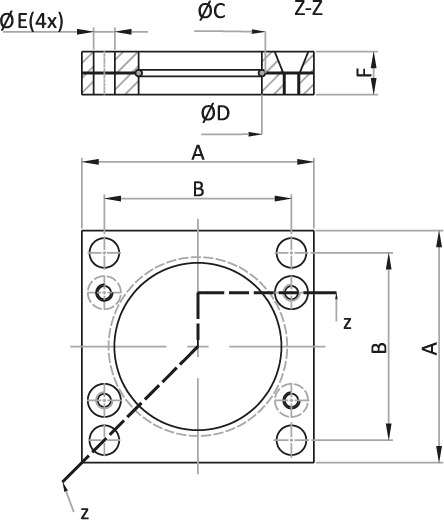

A mm | B mm | ØC mm | ØD mm | ØE mm | F mm |
| DK 032 | b-c-d-h-w | 45 | 35 | 34 | 32.5 | 7 | 9 |
| DK 038 | a-b-c-d-h-w | 52 | 40 | 40 | 38.5 | 7 | 9 |
| DK 045 | a-b-c-d-h-w | 64 | 50 | 47 | 45.5 | 9 | 13 |
| DK 050 | a-b-c-d-h-w | 70 | 56.5 | 54 | 50.5 | 9 | 13 |
| DKA 063 | w | 90 | 73.5 | 67 | 63.45 | 11 | 16 |
| DK 063 | b-d-v | 80 | 64 | 67 | 63.45 | 11 | 16 |
| DK 075 | a-b-c-d-h-w | 90 | 73.5 | 80 | 75.5 | 11 | 16 |
| DK 095 | a-b-c-d-h-w | 110 | 92 | 100 | 95.5 | 13.5 | 18 |
| DK 120 | a-b-c-d-h-w | 130 | 109.5 | 125 | 120.5 | 13.5 | 21 |
| DK 150 | a-b-c-d-h-w | 162 | 138 | 155 | 150.5 | 17.5 | 27 |
| DK 195 | a-b-d-h-w | 210 | 170 | 200 | 195.5 | 17.5 | 27 |
